Engineered SolutionsID: ES002
Truck Loading Conveyors
Specifications
Engineering Reference Sheet
| Loading Rate | 800-1200 bags per hour |
| Bulk Capacity | Up to 270 tons/hour |
| Extension Length | 8-40 feet (customizable) |
| Height Range | Ground level to 4 meters |
| Belt Width | 600-800mm standard |
| Setup Time | 5-10 minutes |
| Labor Reduction | 60-70% vs manual loading |
Built AtHyderabad, IN
StandardISO Certified
Technical Details
Operational Specialty
Rapid truck turnaround with capacities of 800+ bags/hour or 270 tons/hour, reducing loading time by 60-70% compared to manual methods
Mechanism & How It Works

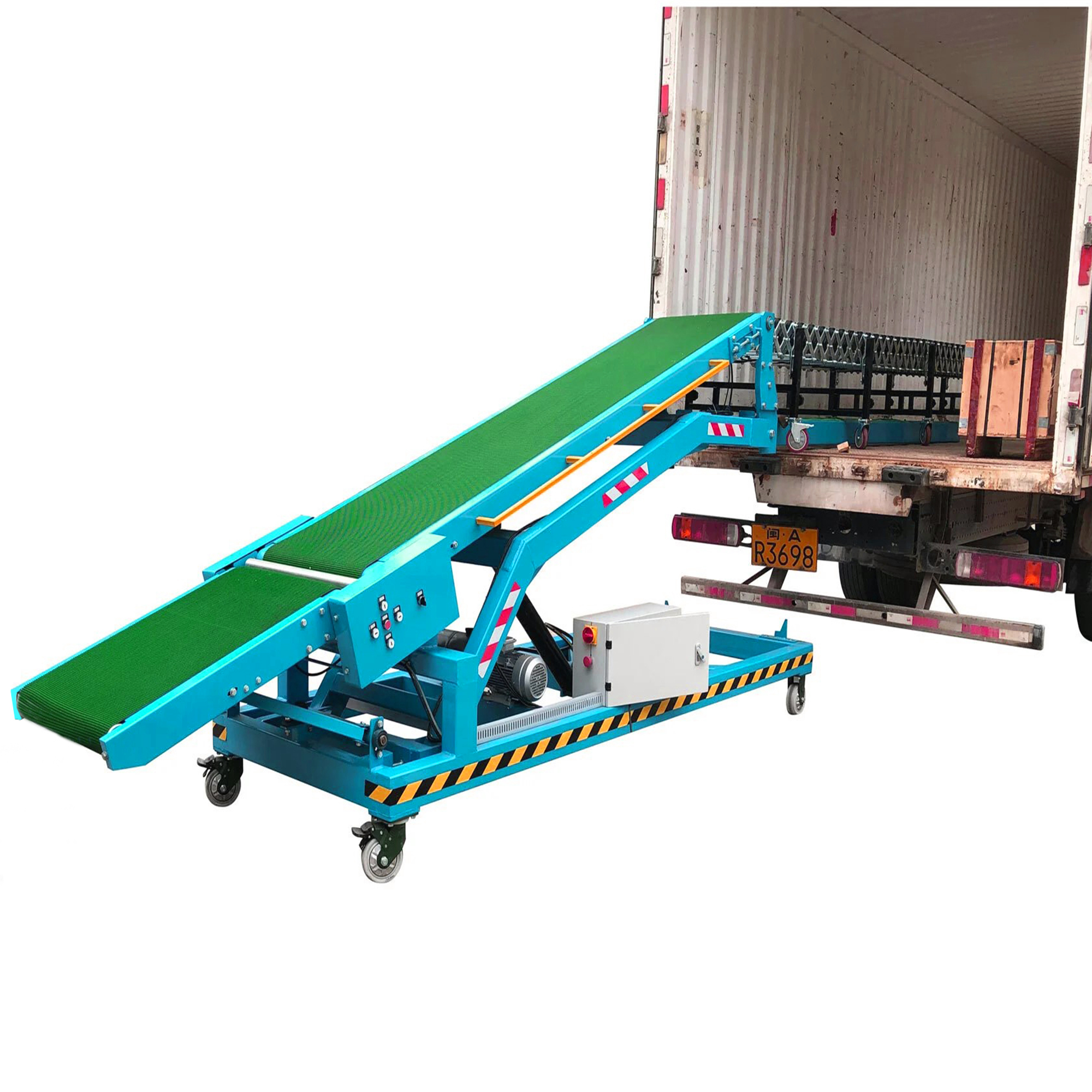

Truck loading conveyors utilize hydraulic or electric lift systems to adjust conveyor height to match truck bed levels (typically 900mm to 4000mm). Telescopic sections extend up to 20+ meters into trailers. High-grip PVC or PVK belts transport materials at variable speeds (10-20 m/min). Controls at both ends allow operators to start, stop, and reverse direction as needed.
