Engineered SolutionsID: ES003

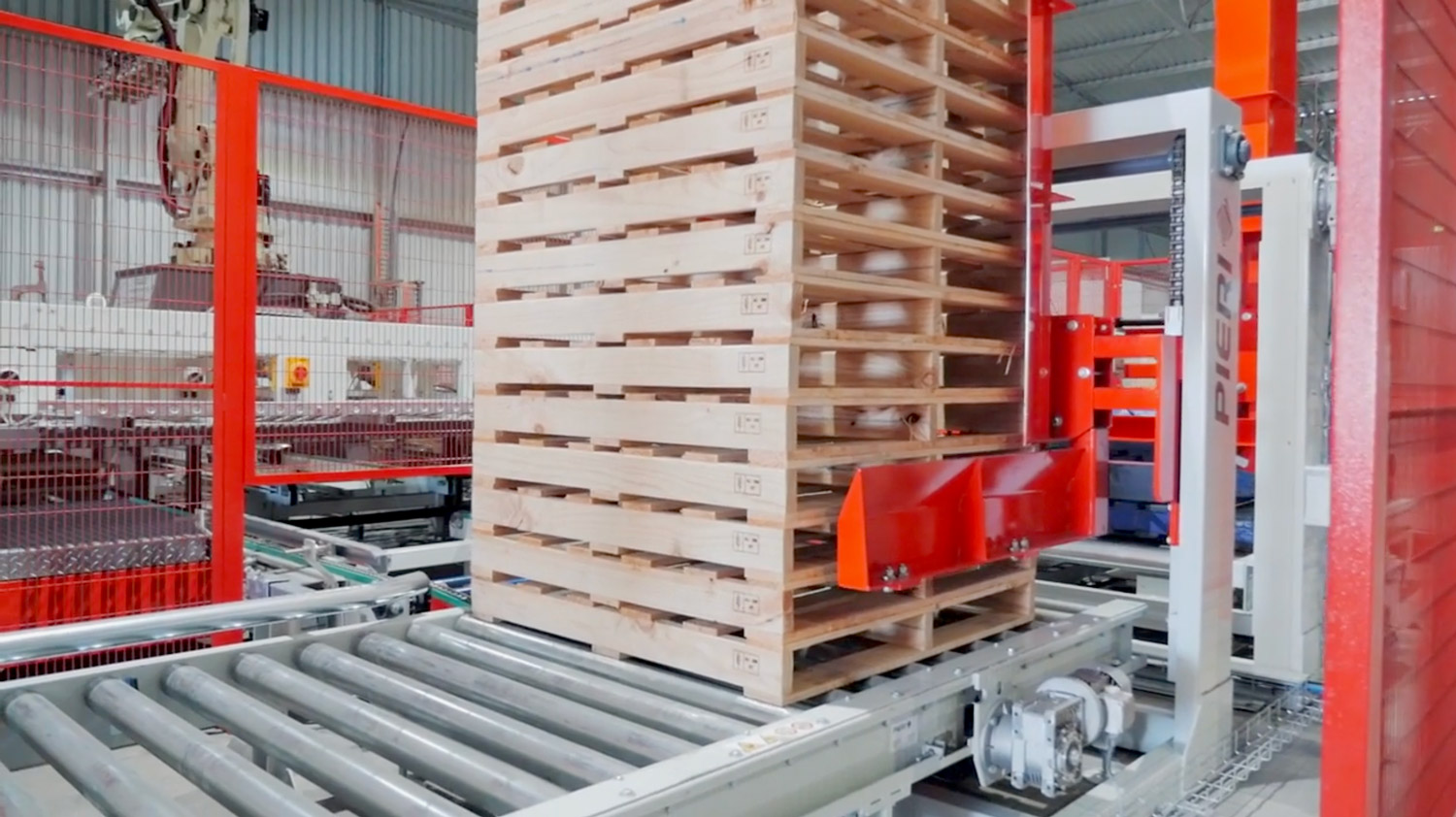

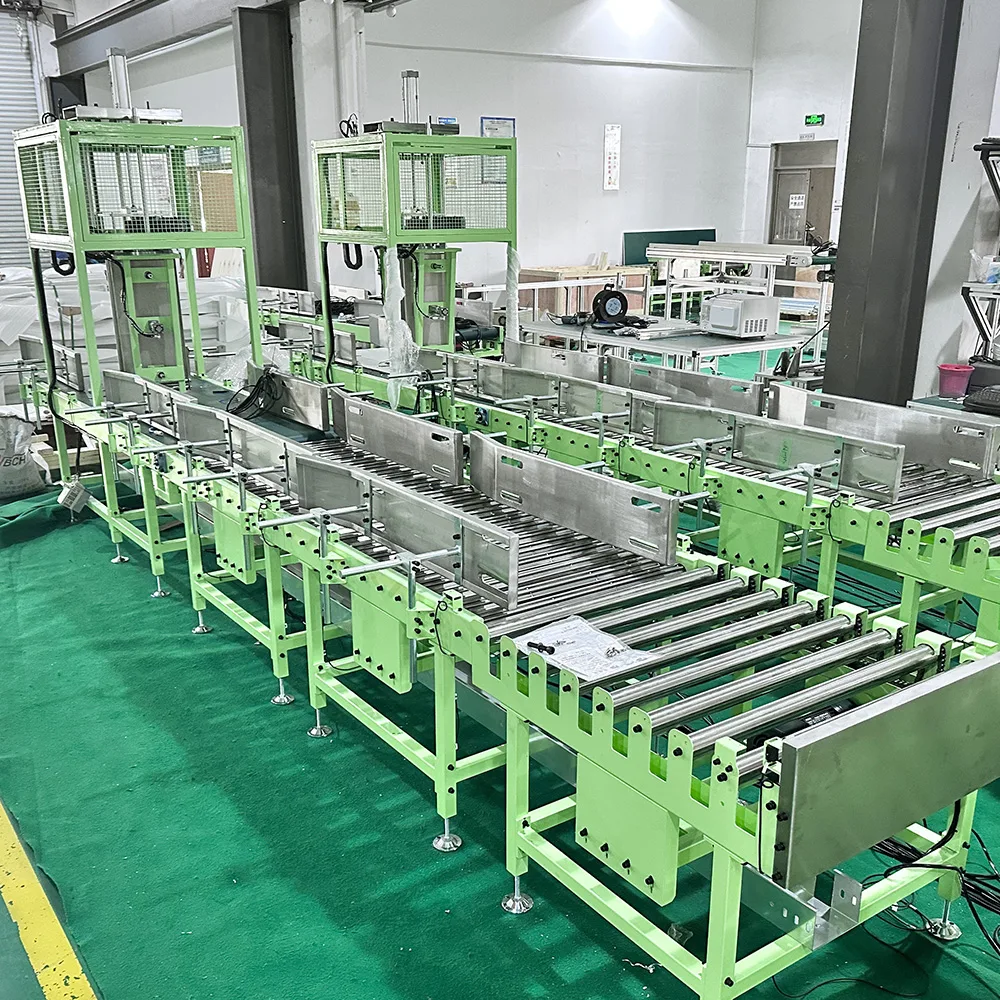

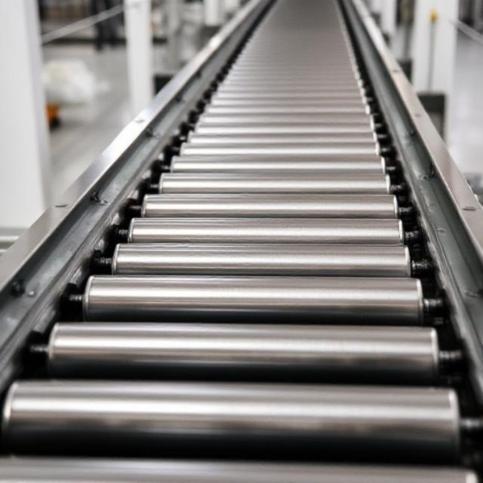

Motorised Roller Lines
Specifications
Engineering Reference Sheet
| Roller Diameter | 48mm, 50mm, 60mm standard |
| Load Capacity | 30-50 kg per roller (varies by model) |
| Speed Range | 5-60 meters per minute |
| Zone Length | 1-3 meters typical |
| Energy Consumption | 40-60W per powered zone |
| Noise Level | <70 dB |
| MTBF (Mean Time Between Failures) | 50,000+ hours |
Built AtHyderabad, IN
StandardISO Certified
Technical Details
Operational Specialty
Energy-efficient 24V brushless motor technology with zone-controlled operation, reducing energy consumption by 60% compared to traditional belt-driven systems
Mechanism & How It Works
Each roller contains an integrated 24V brushless motor with built-in gear reduction. Rollers are connected via internal belts or chain drives. Zone control cards manage power to groups of rollers, allowing products to accumulate without backpressure. Sensors detect product presence and signal controllers to start/stop zones as needed.
